Wire Drawing Machine
Wire Drawing Machine

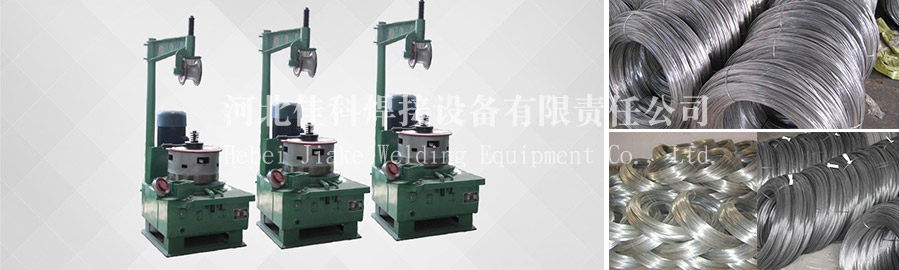

Wire drawing machine is made up of main motor, reduction box, mould box, wheel frame and electrical control system, it easy for operation, low noise and high efficiency. It is a ideal machine to drawing low carbon steel, copper, aluminum and alloy wires. Widely use in wire and cable, building components, galvanized iron wire, metal mesh, nail making factory and other drawing purpose.
Parameter:
|
Model |
LW1-6/560 |
LW1-6/550 |
|
Max. inlet wire |
6.5mm |
6.5mm |
|
Min. outlet wire |
2.0mm |
2.0mm |
|
Pot diameter |
560 |
550 |
|
Drawing path |
1-7 |
1-9 |
|
Drawing speed |
240-300m/min |
135-210m/min |
|
Total compress |
78-88.5% |
78-88.5% |
|
Equal compress |
13% |
13% |
|
Unit motor |
18.5 KW |
15 KW |
|
Weight |
1400 KG |
900 KG |
|
Dimension |
1700*1150*1750mm |
1660*1085*1700mm |
